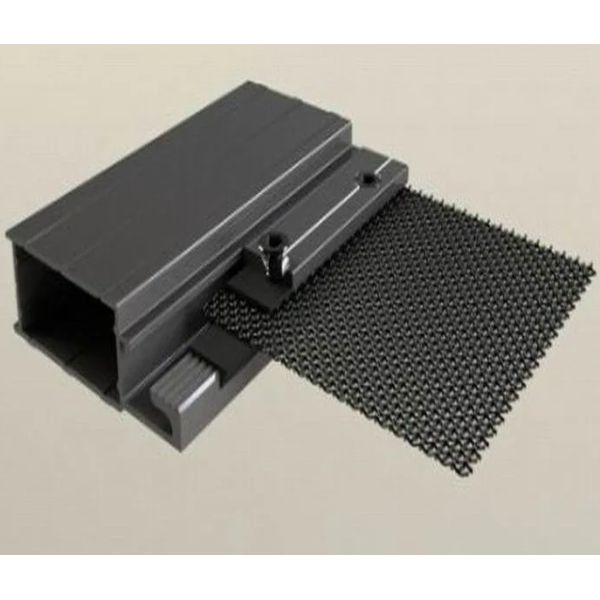

Rust And Corrosion Resistance Window & Door Screen With Marine Grade For Security And Insect Proof
Window screen (also known as insect screen, bug screen, fly screen, wire mesh) is designed to cover the opening of a
window. It is usually a mesh made of aluminum wire, stainless steel wire ,fiberglass or other metals and stretched in a
frame of wood or metal. It serves to keep leaves, debris, spiders, insects, birds, and other animals from entering a building
or a screened structure such as a porch, without blocking fresh air-flow.
1. Products info: stainless steel security window screen
material:
stainless steel wire 304L, 316, 316L
wire diameter:
0.50mm,0.55mm,0.60mm ,0.70mm,0.80mm,0.90mm,1.0mm
mesh size: 10*10mesh,11*11mesh,12*12mesh,13*13mesh,14*14mesh,15*15mesh
surface treatment:
black-matte powder coated, Grey , white, brown, yellow, green,
application:
used in all types of windows and doors
Used in producing security screen that guards your hours anti-theft,anti-mosquito,
anti-pest.It is suitable for advanced door and window
Specifications:
Weave type: plain weave.
Material: stainless steel wire 304, 304L, 316, 316L, 201.
Surface treatment: powder coated or not.
Color: black, white, gray and silver.
Wire diameter: 0.1 mm - 0.6 mm.
Mesh opening: 10 mesh × 10 mesh, 11 mesh × 11 mesh, 12 mesh × 12 mesh, 14 mesh × 14 mesh and 16 mesh × 16 mesh. (Non-standard mesh openings are also available at customers' requests.)
Dimensions:
Width: 750 mm, 800 mm, 900 mm, 1000 mm, 1200 mm, 1500 mm.
Roll length: 10 m, 20 m, 30 m or as your requests.
Specifications of stainless steel window screen | Material | Mesh | Wire Dia | Open (mm) | | mm / inch | | SS 316 or 304 | 10 x 10 | 0.9mm /0.035" | 1.64 | | SS 316 or 304 | 10 x 10 | 1.2mm /0.028" | 1.34 | | SS 316 or 304 | 10 x 10 | 0.8mm / 0.032" | 1.74 | | SS 316 or 304 | 10 x 10 | 1.15mm / 0.045" | 1.39 | | SS 316 or 304 | 11 x 11 | 0.8mm /0.032" | 1.5 | | SS 316 or 304 | 11 x 11 | 0.7mm / 0.027" | 1.6 | | SS 316 or 304 | 12 x 12 | 0.7mm / 0.027" | 1.42 | | SS 316 or 304 | 12 x 12 | 0.58mm / 0.023" |
1.54
| | |
Feature
1. long service life: good weather resistance, anti-aging, anti-cold, anti-inflammatory, anti-drying, anti-humidity, flame retardant, anti-moisture,
anti-static, good light transmission, no silk, no deformation, anti-UV, High tensile strength and long service life.
2. Wide application range, can be directly installed in the window frame, wood, steel, aluminum, plastic doors and windows can be assembled;
corrosion resistance, high strength, anti-aging, fire resistance, no need to paint coloring
3. Non-toxic and tasteless
4. With anti-static function, no ash, good ventilation
5. Good light transmission, with a true invisible effect
6. Automatic filter UV protection to protect the health of the family
7. Environment protectin
Advantages:
1.304 stainless steel
2.The aperture is uniform and the net surface is smooth
3.High strength and toughness
4.Complete specifications, support customization
5.Corrosion resistance and pressure resistance
6.Good filtering performance, durable use
Application
