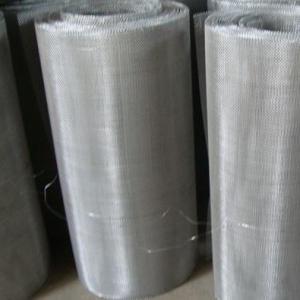

Stainless steel insect mesh is made of the basic stainless alloy (Type 304). It is the most durable of the materials available for insect mesh and has excellent resistance to corrosion.Stainless steel insect mesh keeps out flies, wasps, bees, mosquitoes and other insects.Woven for optimization of 304 stainless steel material, is not easy to rust and corrosion resistance, oxidation resistance is strong, stable performance, stainless steel net uniform aperture high smoothness, surface level off is smooth, without burr, simple maintenance, strong tensile toughness, use cycle is long, high intensity, mesh accurate thickness, the same production with good reproducibility, source manufacturer, factory direct supply, quality guaranteed, Complete mesh specifications, support customization.
Material type: Stainless steel 304,304l,316,316l,
Weave type: plain weave style
Common specification: 11 mesh * 0.8mm wire, 11 mesh* 0.9mm wire,10 mesh * 0.9mm wire, 12mesh* 0.7mm wire,14 mesh* 0.6mm wire, 14 mesh * 0.7mm wire
Standard size: 750mm×2000mm 900mm×2000mm 1200mm×2000mm 750mm×2400mm 900mm×2400mm 1200mm×2400mm,1300mmx2600mm, 1500mmx2400mm.
Color: black,white, gray, dark gray,
| Product | Stainless Steel Security Window Screen |
| Material | SS302, 304, 304L, 316, 316L, etc |
| Weaving Pattern | Plain Weaving; Twill Weaving; Dutch Weaving; etc |
| Wire Dia. | 0.18mm-1.2mm |
| Mesh Number | 11mesh-30mesh |
| Width | 0.6m-1.5m |
| Edge Processing | Closed Selvage; Flash; Perm Border |
| Color | White; Black; Green; Gray; etc |
| Characteristic | acid proof, alkali proof, high temperature resistant, wear-resisting |
| Application | 1. stall in window or door as window screen or mosquito
2. used in greenhouse as anti-insect or anti trip net
3. used in fishing breed or poultry rasing as pool or garden guard
4. uesd in agricutlure product for food drying |
Light duty specification list
| Product name | Specification | Introduction |
| Mesh/Inch | Wire diameter | Roll size (m) | |
| Stainless Steel insect screen | 16 × 16 | 0.35mm | 0.6 x 30.5 0.9 x 30.5 1.2 x 30.5 | Material: ss304, ss316 |
| 18 × 18 | 0.23mm |
| 18 × 14 | 0.28mm |
| 20 × 20 | 0.18mm |
| 24 x 24 | 0.22mm |
For high traffic areas, such as doors or windows, you can select our heavy duty stainless steel insect mesh. The mesh can be installed to protect windows or doors; it can also play a part to keep insects out, but also provide extra security without comprising ventilation.
Heavy duty specification list
| Product name | Specification | Introduction |
| Mesh/Inch | Wire diameter | Panel size (mm) | |
| Stainless steel fly screen mesh | 10 × 10 | 0.9mm | 1500 x 2500 1300 x 2600 1200 x 2000 1200 x 2400 1000 x 2400 | Material: T 304, T 316 |
| 11 × 11 | 0.8mm |
| 12 × 12 | 0.7mm |
- Customized sizes can also be supplied
- 316 marine grade stainless steel
- Corrosion resistant and ideal for bushfire-prone or coastal areas
- Black powder coated to minimize glare and has excellent visibility
- Ember protection
